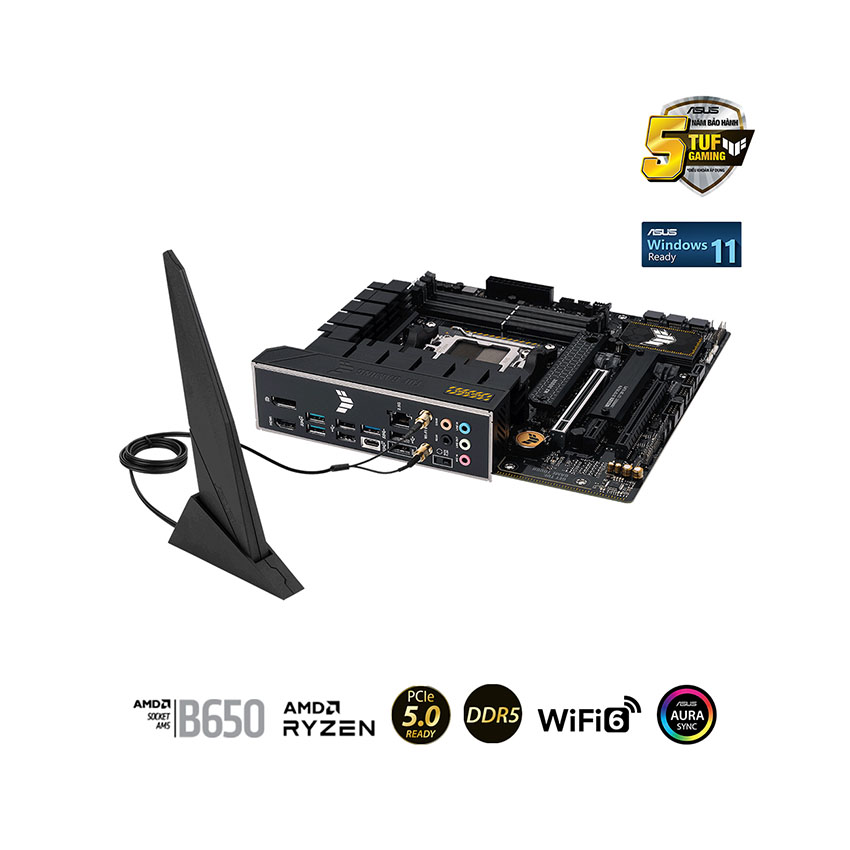

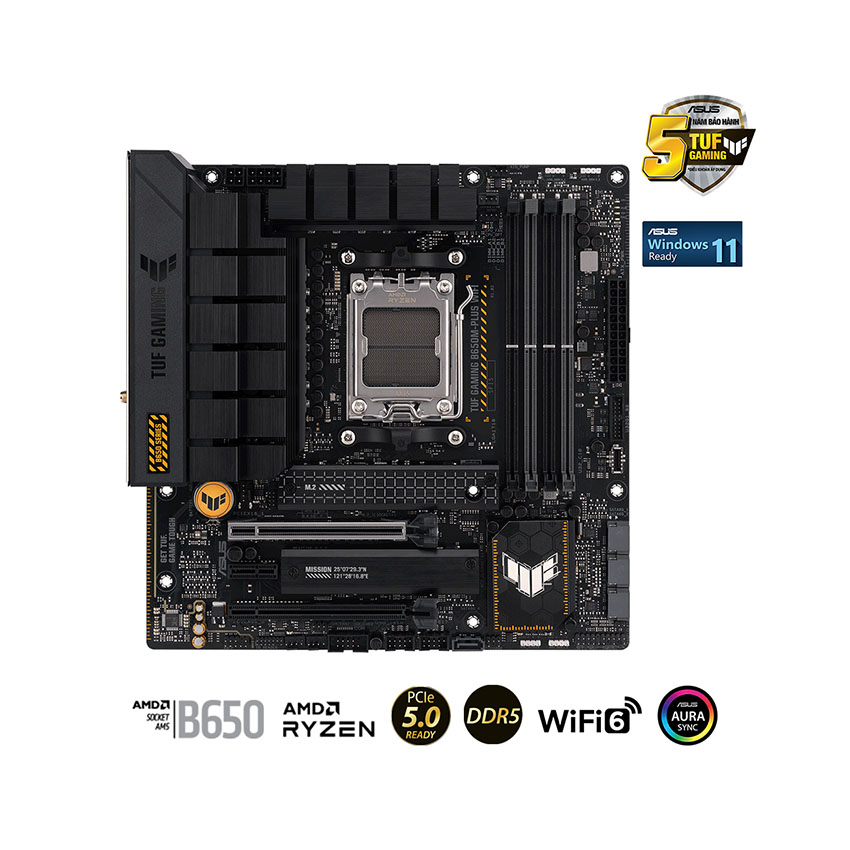

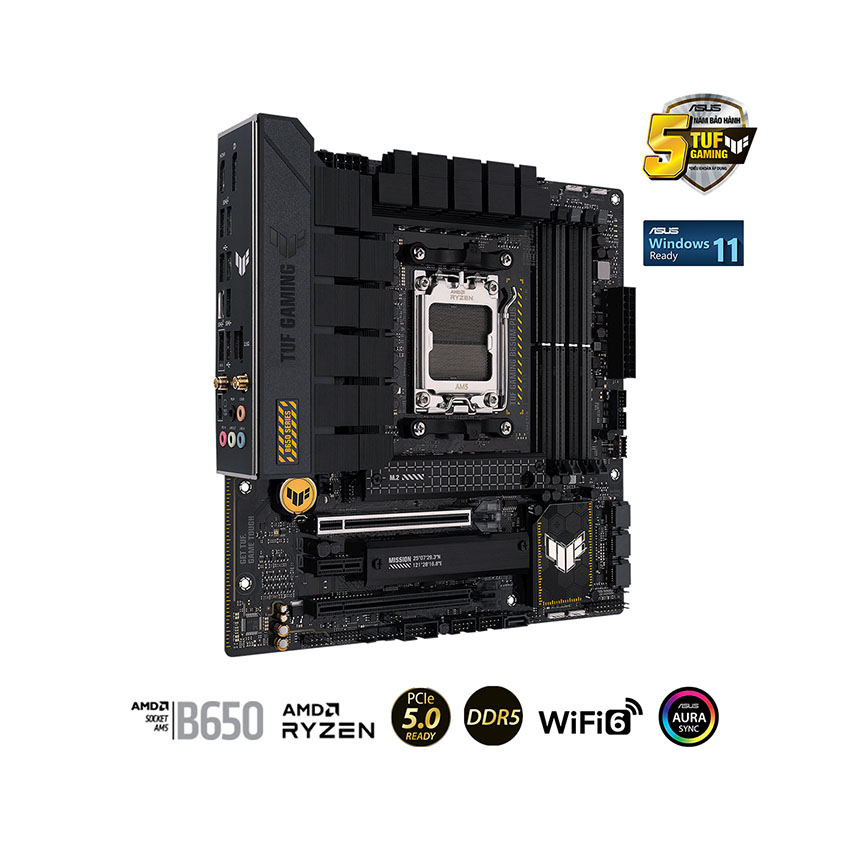

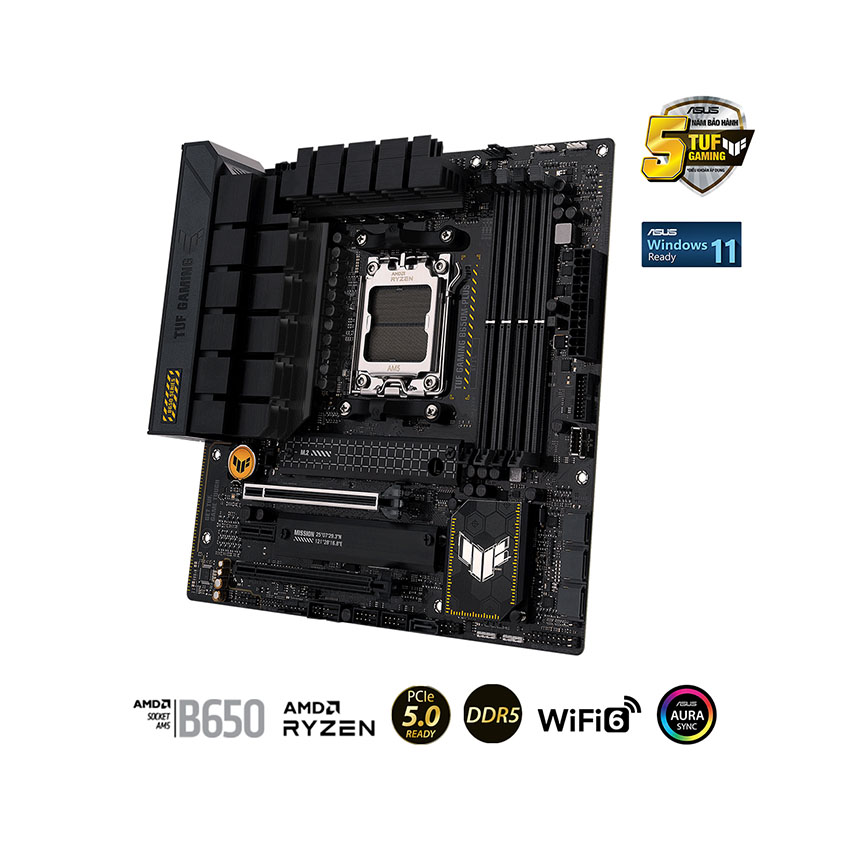

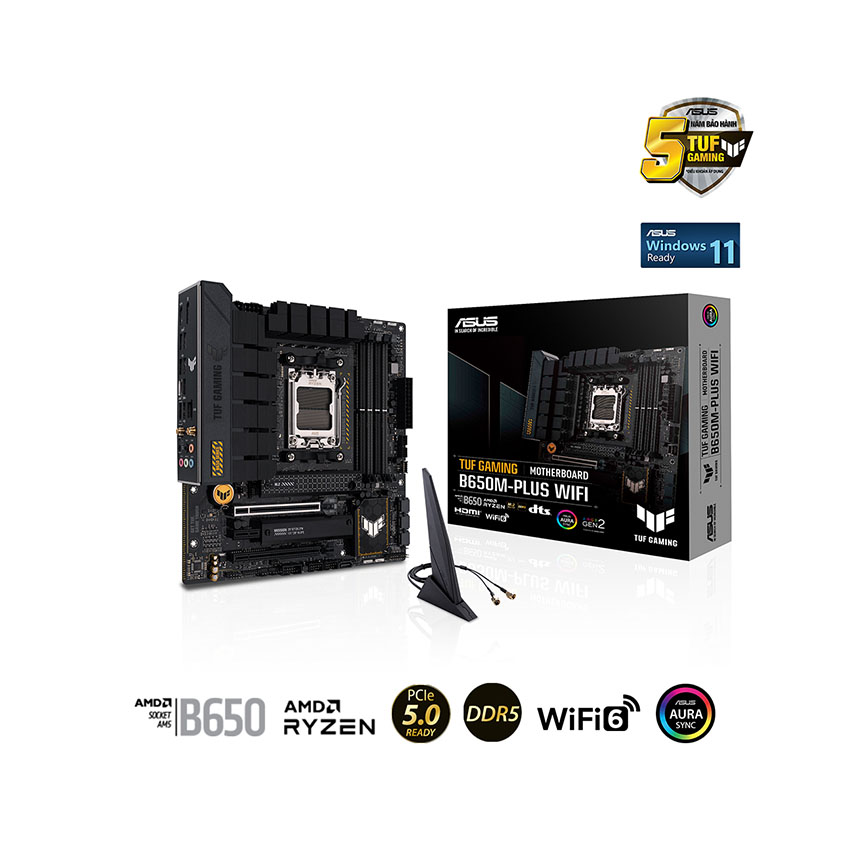

Mainboard ASUS TUF GAMING B650M PLUS WIFI
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asus |
| Model | TUF GAMING B650M-PLUS WIFI |
| CPU hỗ trợ | AMD |
| Chipset | AMD B650 |
| RAM hỗ trợ | 4 x DIMM, Max. 128GB, DDR5 |
| 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory | |
| Khe cắm mở rộng | AMD Ryzen™ 7000 Series Desktop Processors* |
| 1 x PCIe 4.0/3.0 x16 slot | |
| AMD B650 Chipset | |
| 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0/3.0 x1 slot | |
| Ổ cứng hỗ trợ | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| AMD B650 Chipset | |
| 4 x SATA 6Gb/s ports | |
| Cổng kết nối (Internal | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB Gen 1 connector (supports USB Type-C® ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderbolt™ (USB4®) header | |

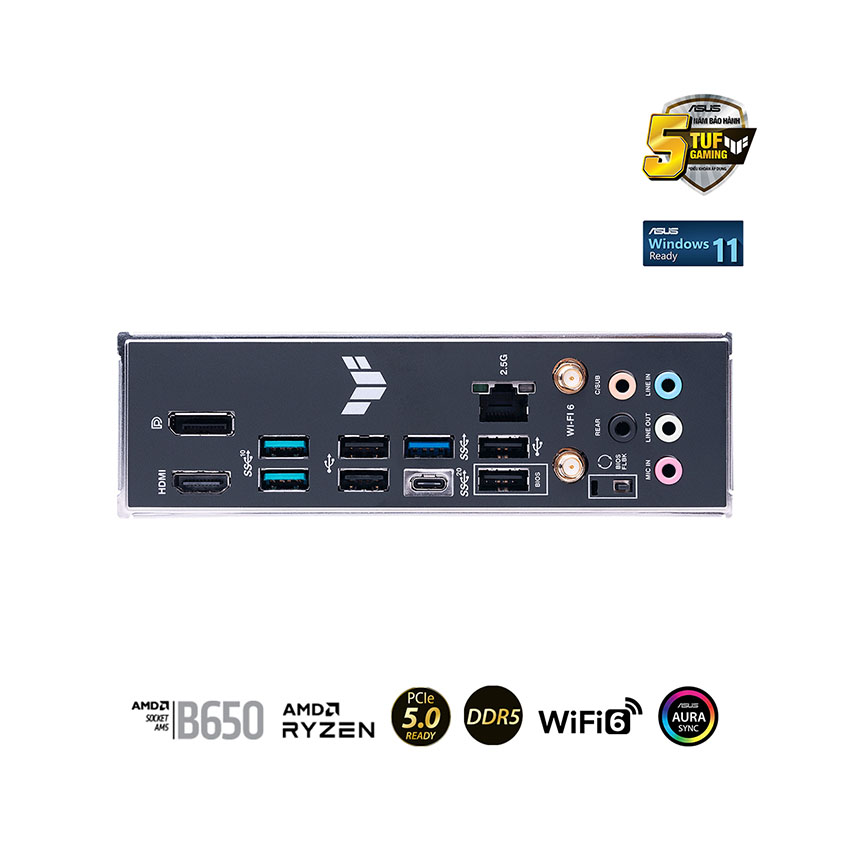

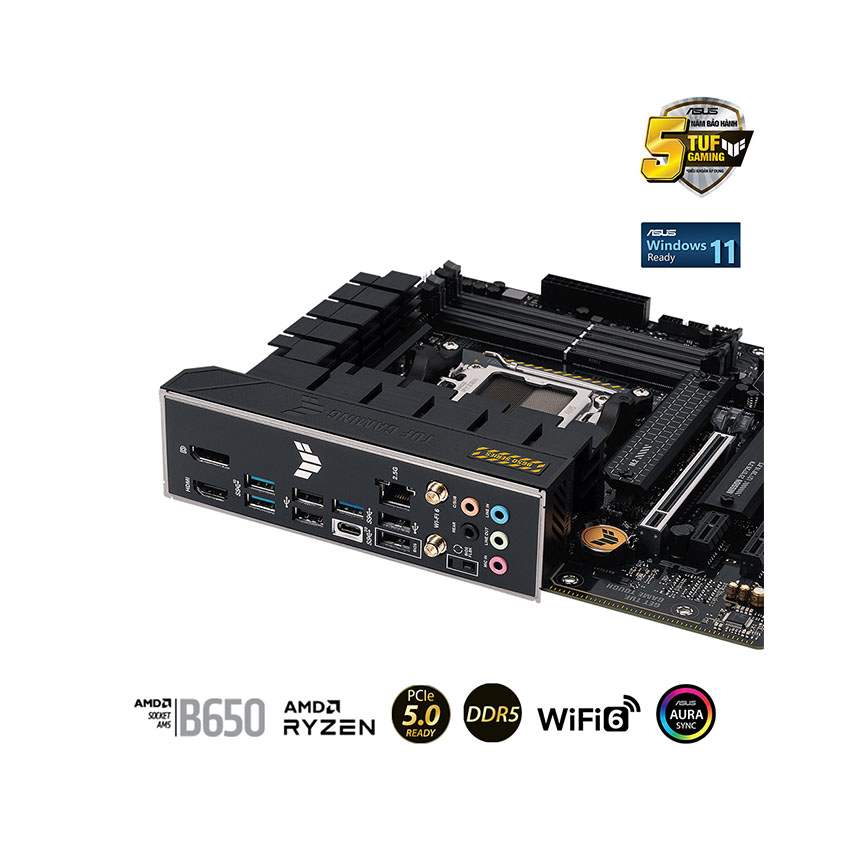

| Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI®port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| LAN / Wireless | Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| 1 x Realtek 2.5Gb Ethernet TUF LANGuard | |

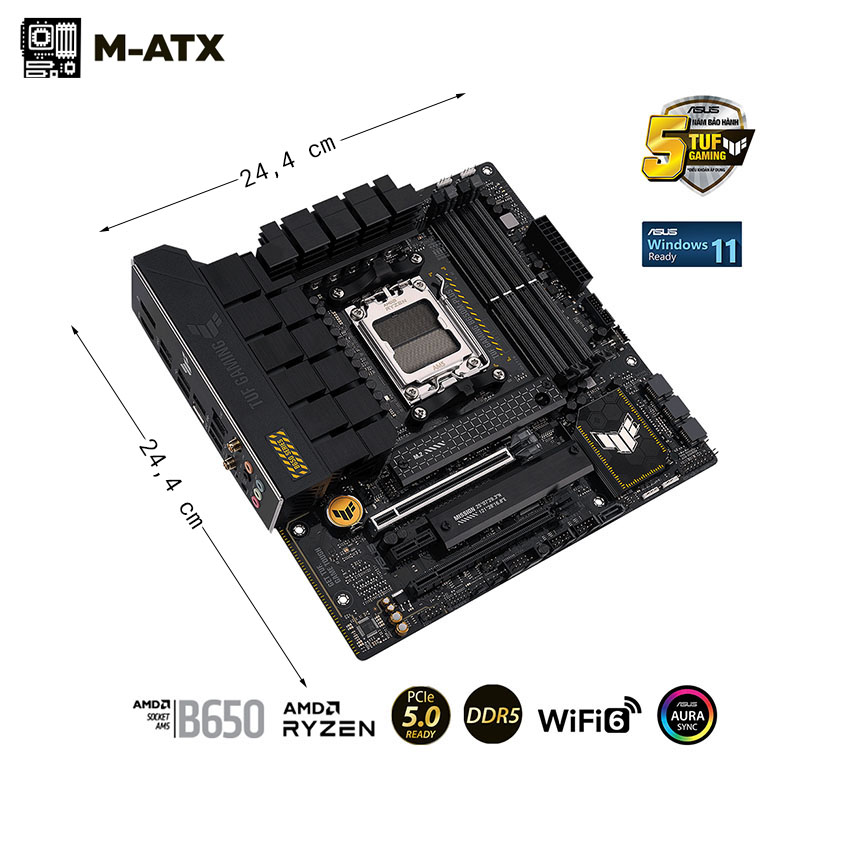

| Kích cỡ | micro-ATX Form Factor |
