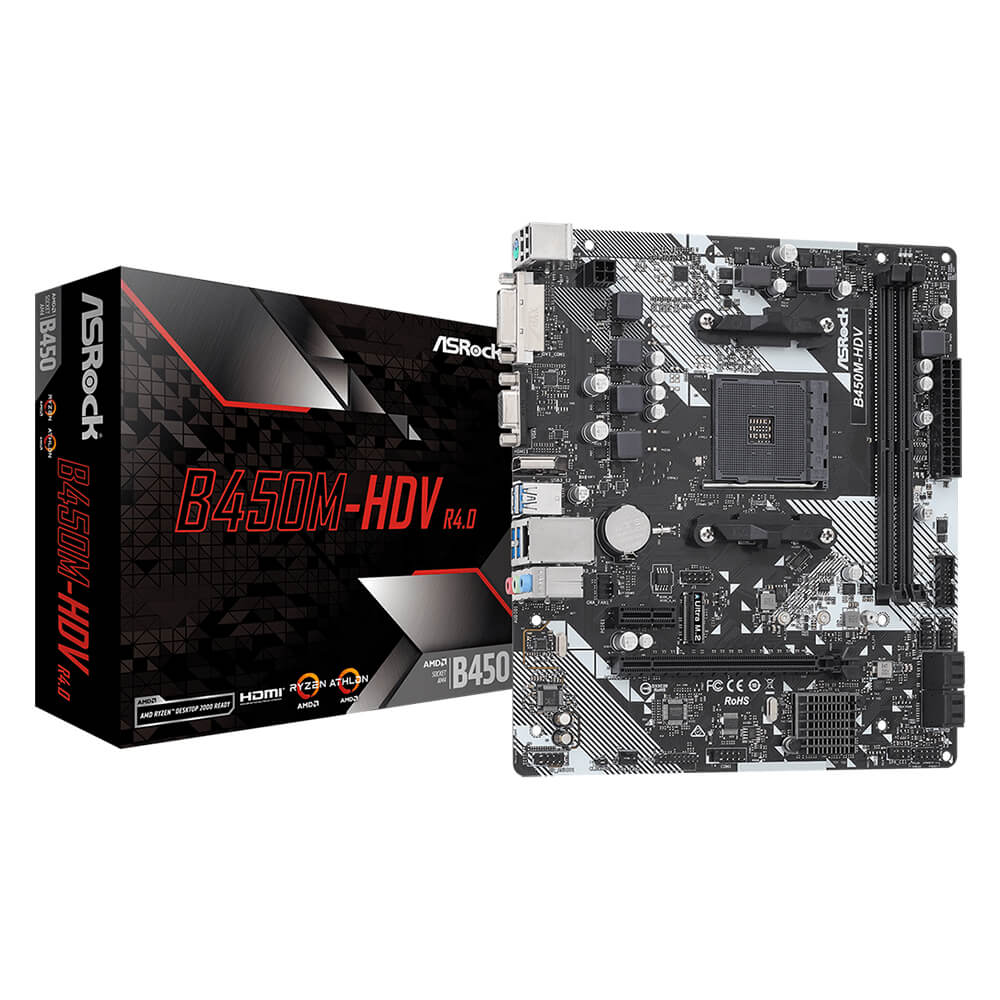

Mainboard ASROCK B450M-HDV R4.0
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asrock |
| Model | B450M-HDV R4.0 |
| CPU hỗ trợ | AMD |
| Chipset | B450 |
| RAM hỗ trợ | 2 x DDR4 DIMM Slots, support up to 64GB DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory |
| Khe cắm mở rộng | AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* – 1 x PCI Express 2.0 x1 Slot |
| Ổ cứng hỗ trợ | – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU) |
| Cổng kết nối (Internal) | – 1 x COM Port Header – 1 x TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** – 1 x 24 pin ATX Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |

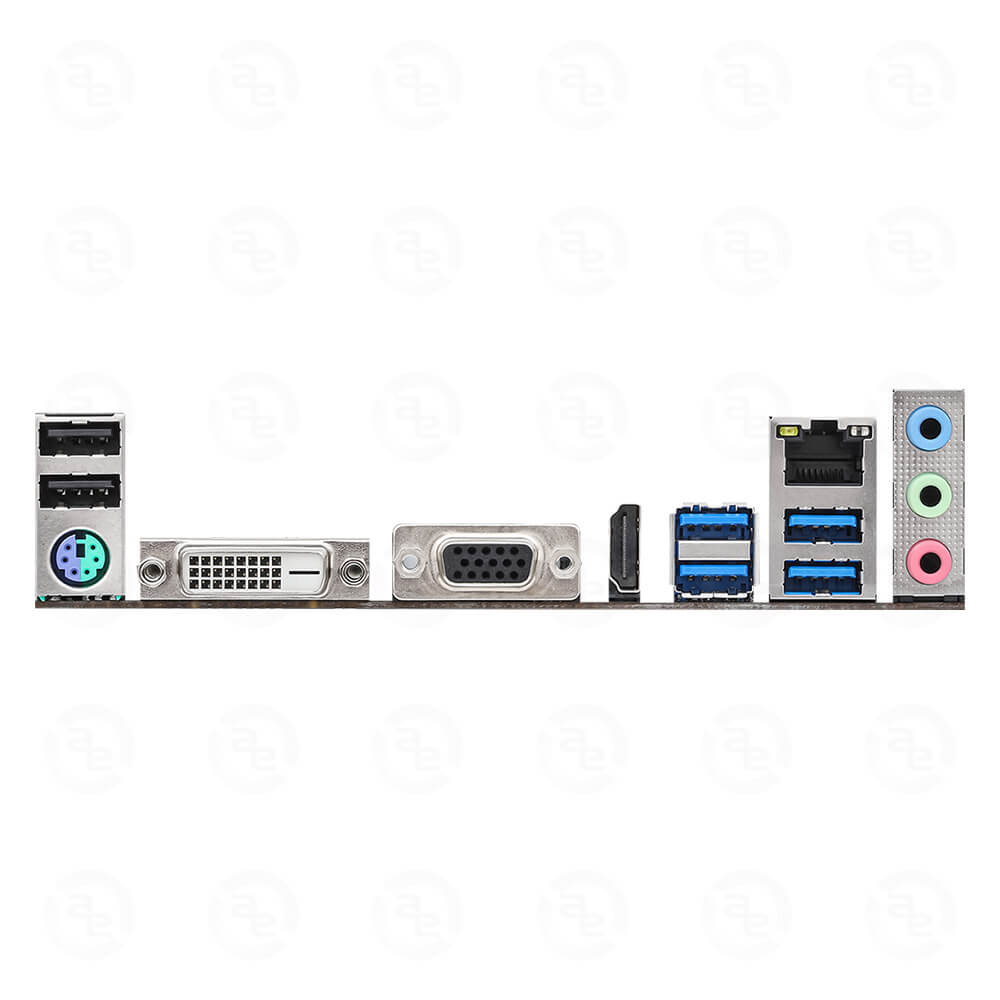

| Cổng kết nối (Back Panel) | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN / Wireless | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Kích cỡ | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm |
