Mainboard Gigabyte H610M H V3 DDR4
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Gigabyte |
| Model | H610M H V3 DDR4 |
| CPU hỗ trợ | Intel |
| Chipset | Intel® H610 Express Chipset |
| RAM hỗ trợ | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture |
| Khe cắm mở rộng | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Ổ cứng hỗ trợ | Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) – 4 x SATA 6Gb/s connectors |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header |

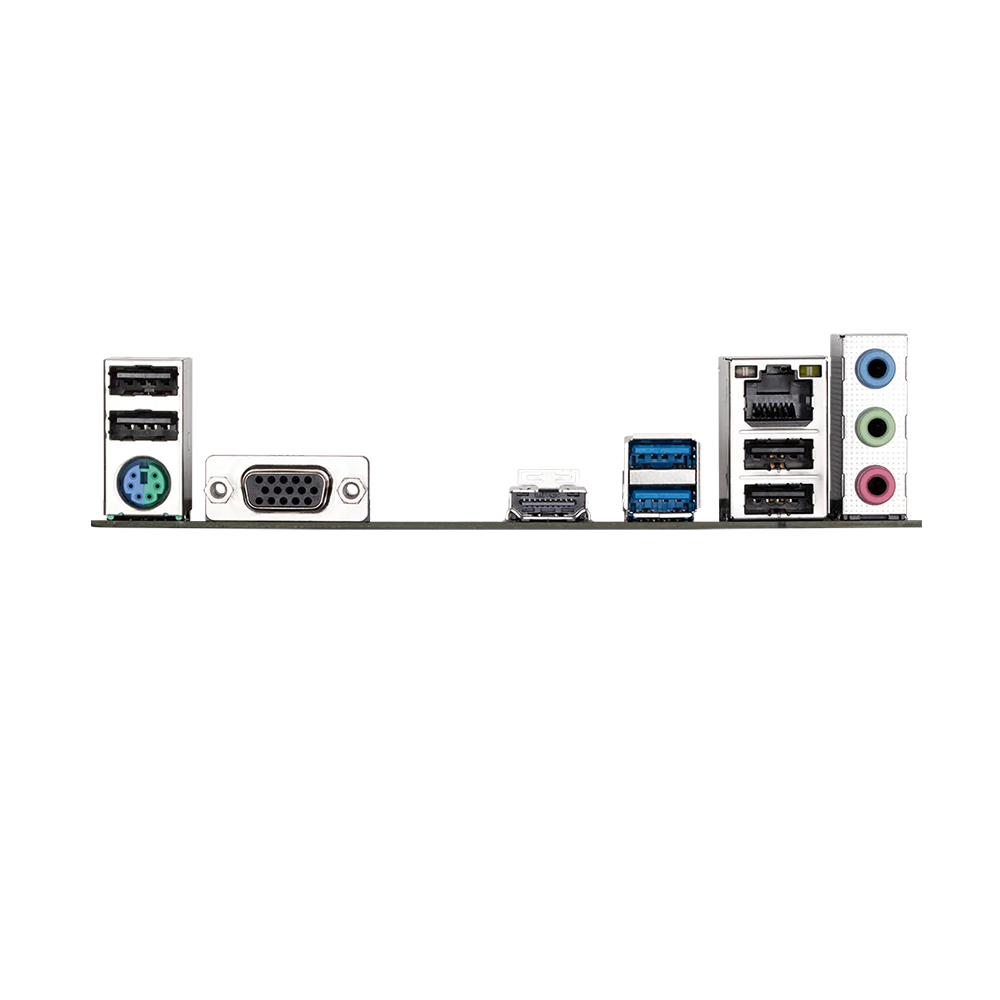

| Cổng kết nối (Back Panel) | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN / Wireless | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Kích cỡ | Micro ATX Form Factor; 22.3cm x 19.3cm |
