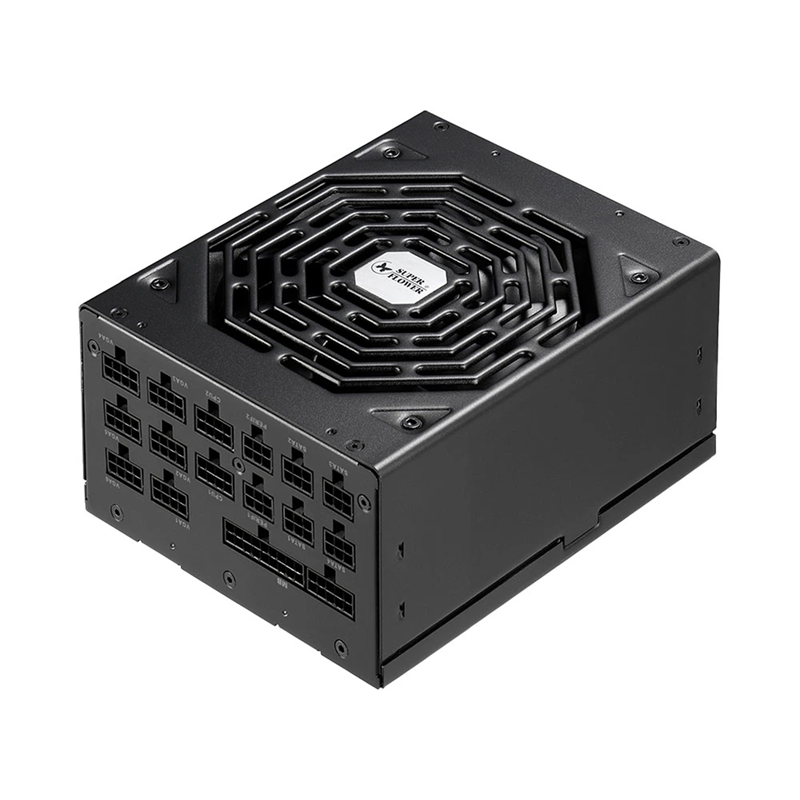

Nguồn Super Flower Leadex Platinum SE 1200W 80 Plus Platinum
| Hãng sản xuất |
SUPER FLOWER
|
| Công suất tối đa | |
| Loại cổng cắm |
Full-Modular
|
| Quạt làm mát |
140mm
|
| Nguồn đầu vào |
115-240V
|
| Chứng nhận |
80 PLUS PLATINUM
|
| PSU Form Factor |
ATX
|
| Brand | Super Flower |
| Series | Leadex |
| Model | SF-1200F-14MP |
| Type | ATX |
| Maximum Power | 1200W |
| Fans | 1 x 14cm |
| PFC | Active |
| +12V Rails | 1 |
| Modular Cable | Yes 100% modular cable design |
| Input Voltage | Full Ranage – 100V~240V |
| Input Frequency Range | 50 ± 3 Hz / 60 ± 3 Hz |
| Output | +3.3V@20A ; +5V@20.0A ; +12V@99.9A ; -12V@0.5A ; +5Vsb@2.5A |
| Protection | OVP OCP OPP SCP UVP |
| Dimension | 200mm(L) x 150mm(W) x 86mm(H) |
| Safety Certification | BSMI R33529 / CE / FCC / CUL / cTUVus / CB |

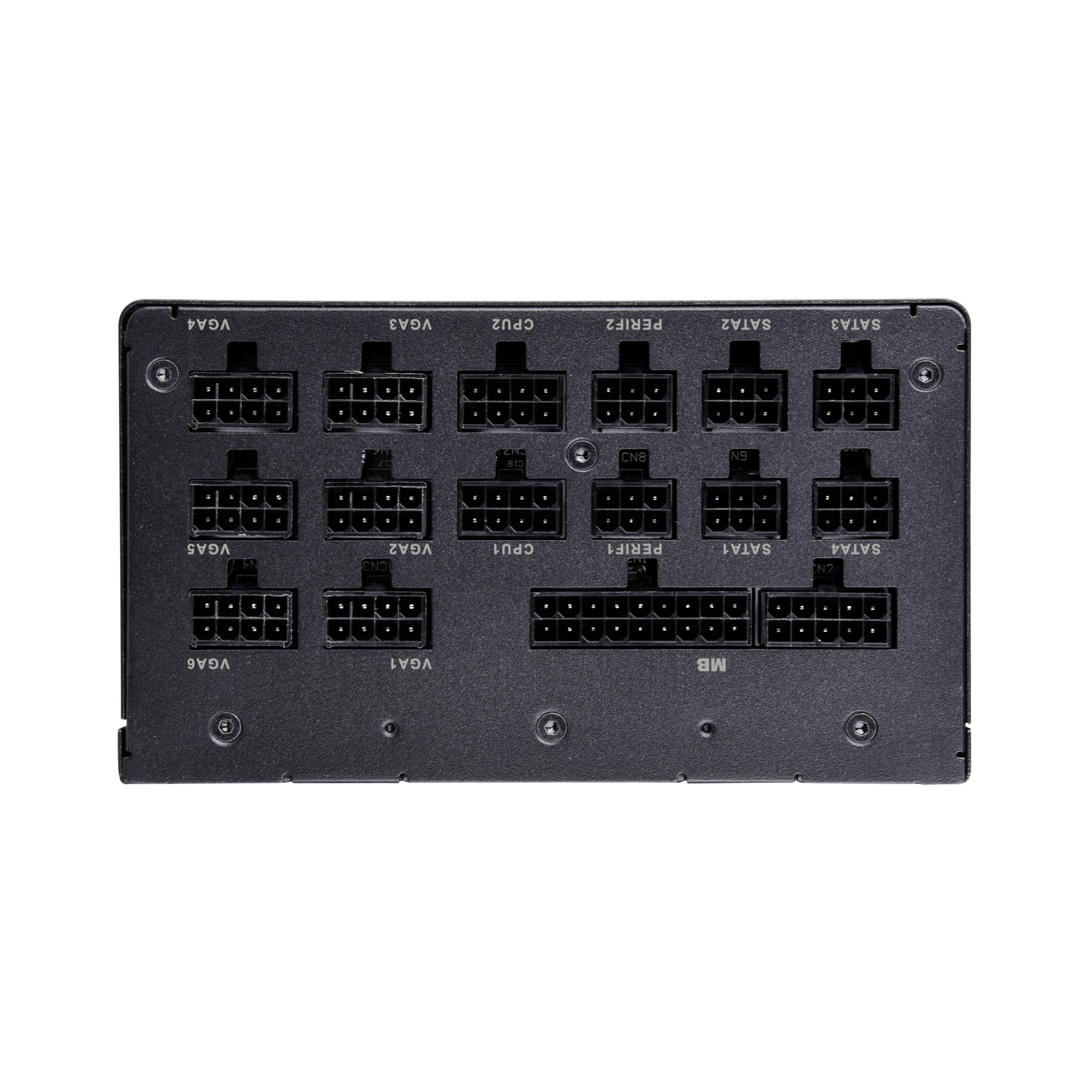

| Connectors | |
| Detachable Cables | One cable > 20+4pins MB power connector |
| One cable > 8pins (4+4pins) EPS/ATX 12V connector | |
| One cable > 8pins EPS 12V connector | |
| One cable > 2 x SATA + 2 x 4pins Molex | |
| One cable > 3 x 4pins Molex + 1 x FDD | |
| Two cables > 4 x SATA | |
| One cable > 2 x 8pins (6+2pins) PCI express connector | |
| Four cables > 8pins (6+2pins) PCI express | |
| Power Specifications | |
| Rail Voltage(V) | Current(A) |
| 3.3V | 20A |
| 5V | 20A |
| 12V | 99.9A |
| 5VSB | 2.5A |
| -12V | 0.5A |
| Total Max. Power | 1200W |
