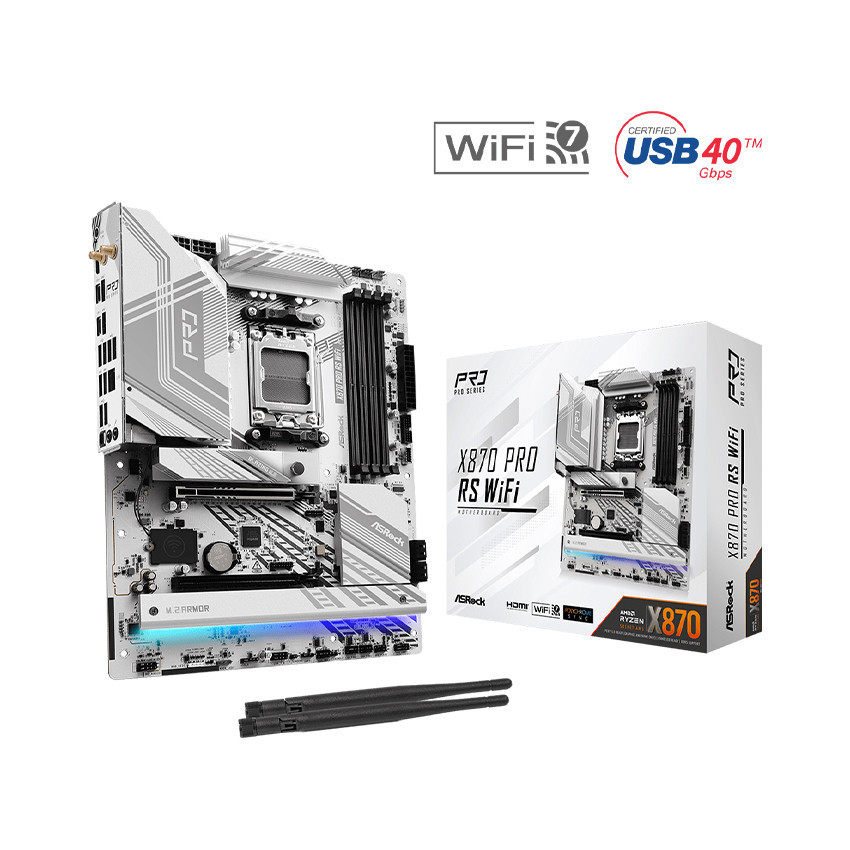

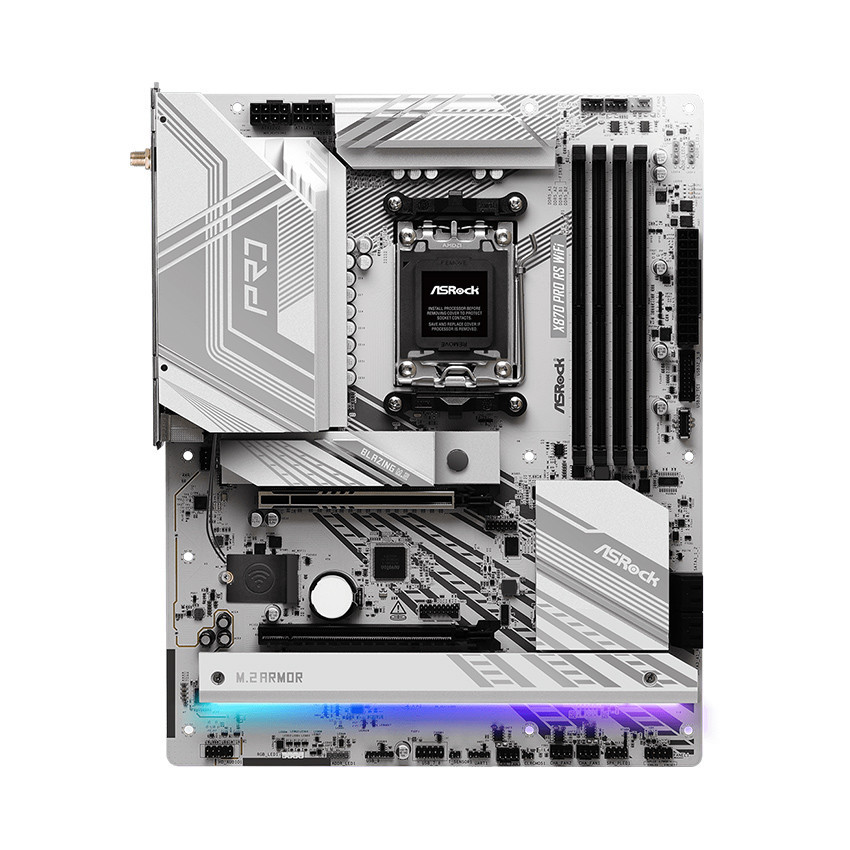

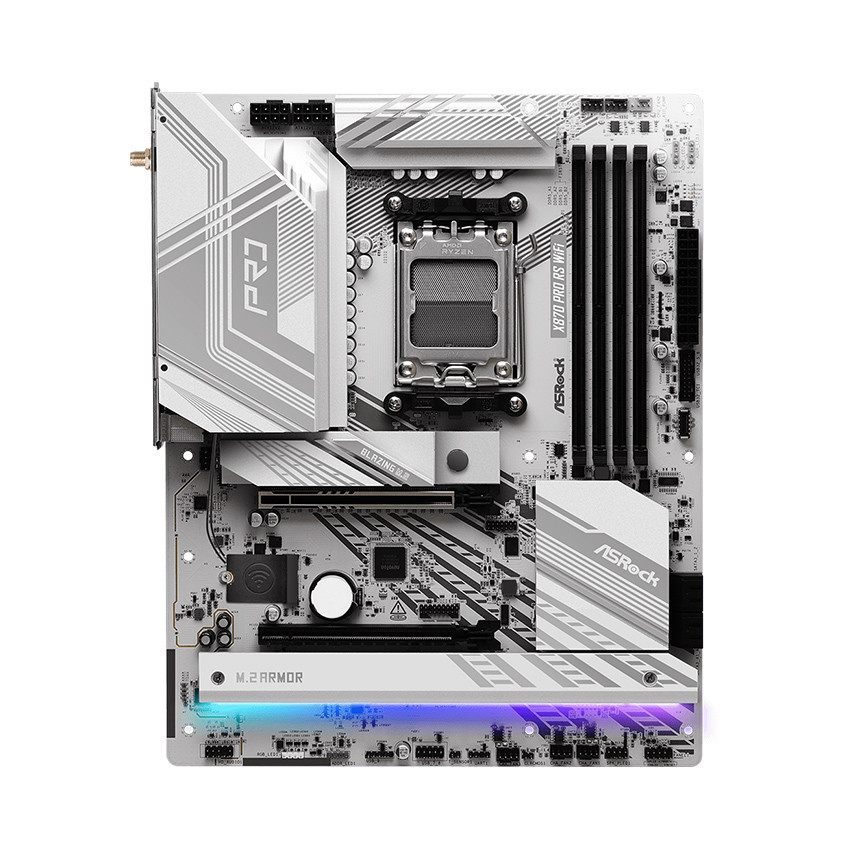

Mainboard Asrock X870 Pro RS WiFi
| Thương hiệu | ASRock |
| Socket | AMD AM5 |
| Chipset | AMD X870 |
| Bus RAM hỗ trợ | 8000+(OC) |
| Khe RAM tối đa | 4 khe |
| Khe cắm mở rộng | 1 x PCIe 5.0 x 16 Slot |
| 1 x PCIe 4.0 x 16 Slot | |
| 1 x M.2 Socket | |
| Hỗ trợ bộ nhớ tối đa | 256GB |
| WIRELESS / BLUETOOTH | Wi-Fi 7 ( 802.11be) |
| Bluetooth 5.4 | |
| Lưu trữ | 1 x Blazing M.2 Socket |
| 1 x Hyper M.2 2230/2242/2260/2280 PCIe Gen4x4 | |
| 1 x Ultra M.2 Socket 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 | |
| 2 x SATA3 6.0 Gb/s | |
| 2 x SATA3 6.0 Gb/s | |
| Kích cỡ Mainboard | ATX |
| Cổng xuất hình | 1 x HDMI 2.1 |
| 2 x USB4 | |
| Cổng mạng | LAN 2.5Gb |
| Dragon RTL8125BG | |
| USB | CPU: |
| 2 x USB4 Type-C (Rear) | |
| 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)) | |
| Chipset: | |
| – 1 x USB 3.2 Gen2x2 Type-C (Front) | |
| 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front) | |
| 9 x USB 2.0 (6 Rear, 3 Front) | |
| INPUT/OUTPUT phía sau | 2 x Cổng Ăng-ten |
| 1 x Cổng HDMI | |
| 1 x Cổng ra SPDIF quang | |
| 2 x Cổng USB4 Type-C | |
| 4 x Cổng USB 3.2 Gen1 Type-A. | |
| 2 x Antenna Ports | |
| 1 x HDMI Port | |
| 1 x Optical SPDIF Out Port | |
| 2 x USB4 Type-C Ports (40 Gb/s) | |
| 4 x USB 3.2 Gen1 Type-A Ports | |
| 6 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| 1 x BIOS Flashback Button | |
| 1 x Line Out Jack | |
| 1 x Microphone Input Jack | |
| Connector | 1 x Thermistor Cable Header |
| 1 x Power LED and Speaker Header | |
| 1 x RGB LED Header | |
| 3 x Addressable LED Headers | |
| 2 x CPU Fan Connectors (4-pin) | |
| 4 x Chassis Fan Connectors (4-pin) | |
| 1 x AIO Pump Fan Connector (4-pin) | |
| 1 x 24 pin ATX Power Connector | |
| 2 x 8 pin 12V Power Connectors | |
| 1 x Front Panel Audio Connector | |
| 2 x USB 2.0 Headers | |
| 1 x USB 3.2 Gen1 Headers | |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
