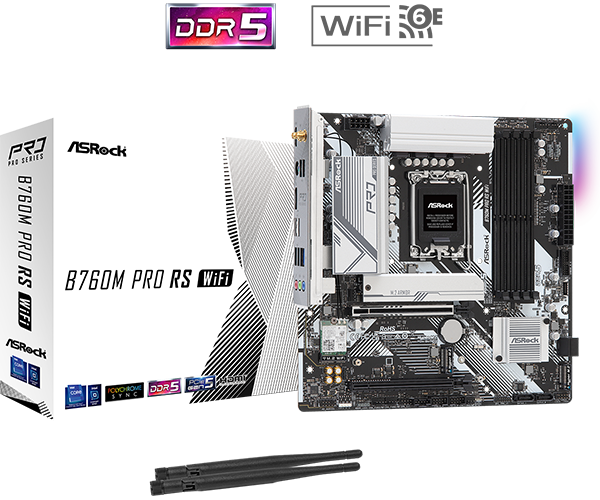

Mainboard ASRock B760M Pro RS WIFI DDR5
| Thông số | Chi tiết |
| Hãng sản xuất | Asrock |
| Chipset | Intel B760 |
| CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) |
| Socket | LGA 1700 |
| RAM | DDR5 |
| Hỗ trợ tối đa RAM | 256GB |
| Khe cắm PCI-E | 1 PCIe 5.0 x16, 1 PCIe 3.0 x16 |
| Card đồ họa | – Intel® Xe Graphics Architecture (Gen 12) – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Kết nối | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Khe cắm M.2 | 3 |
| Âm thanh | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
| Cổng I/O bên trong | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Cổng I/O phía sau | – 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 3 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Kích thước |
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
|
| Trọng lượng | – |
| Tương thích | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Tính năng khác |
|
